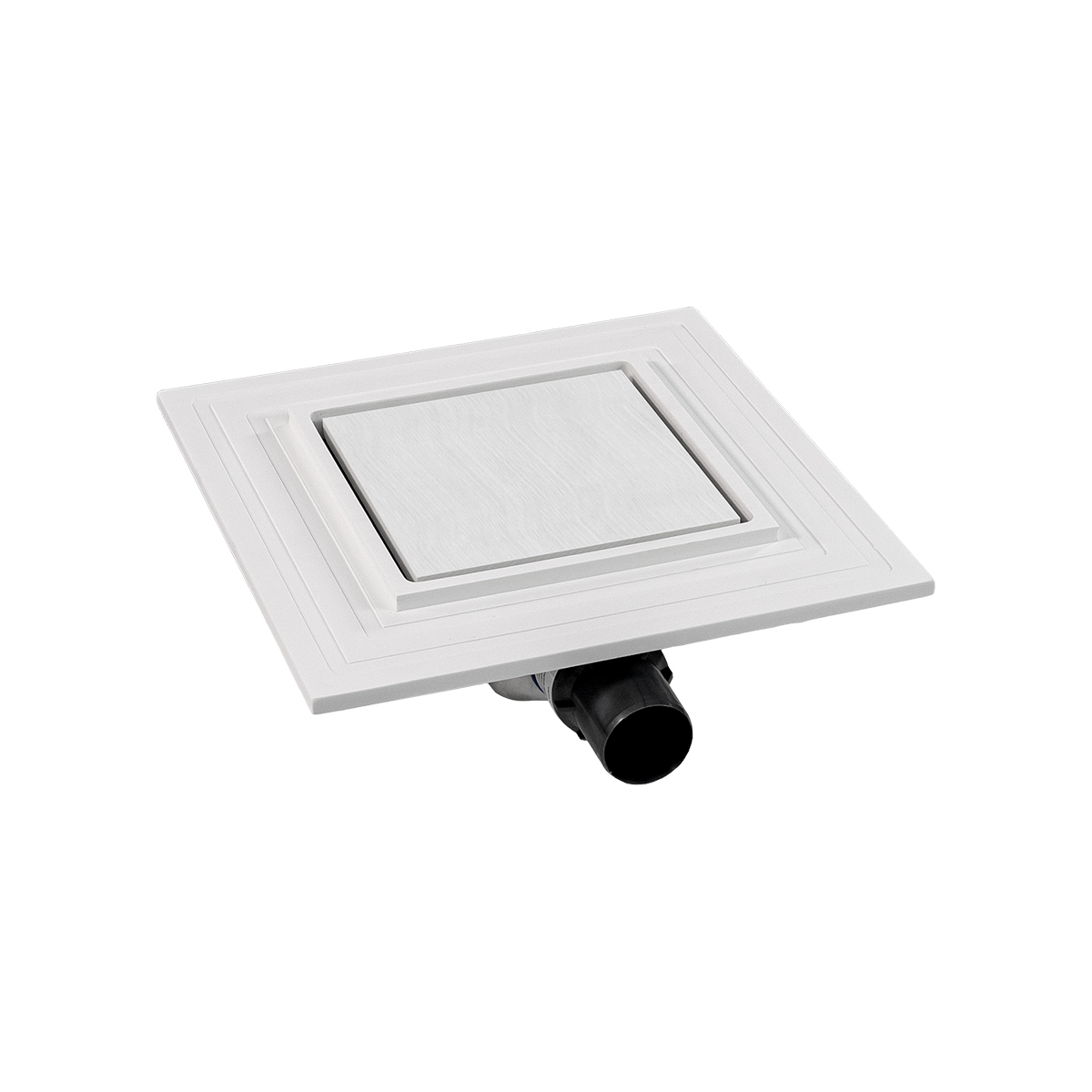

I-Drain Liquid Square incl. grating

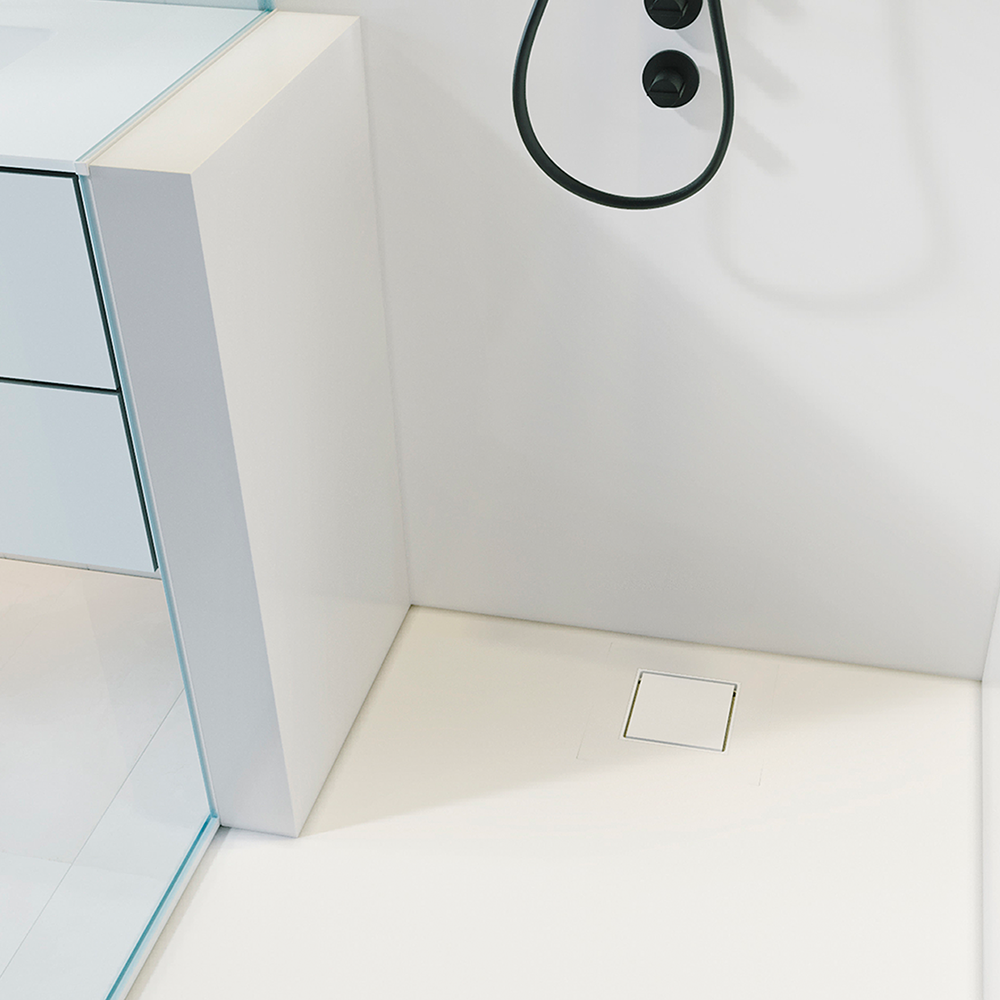

The I-DRAIN LIQUID SQUARE offers a sleek and compact shower design designed specifically for use in cast floors. Available in white and gray, it blends perfectly with both light and dark floor finishes. With easy installation and guaranteed watertightness, the LIQUID SQUARE is ideal for any cast floor. The 5 cm wide flanges ensure optimal overlap and strong adhesion of the scraper layer. The robust channel body is made of high-quality 316 stainless steel, which guarantees durability.

As standard, the I-DRAIN LIQUID SQUARE comes with a sandable Solid Surface grating so that it can be finished seamlessly in the color of the screed.

Technical specifications

• Material: Deep drawn stainless steel (SS 316)
• Installation height: 61 mm (excluding screed)
• Siphon: Removable and detachable
• Drainage capacity: 24 liters per minute
• Connection size: 40 mm
• Water lock height: 35 mm
• Includes: I-Buddy installation template
• Warranty: 10 years
• Grating: Sandable Solid Surface, included
